Architecture & Security

Layered Architecture

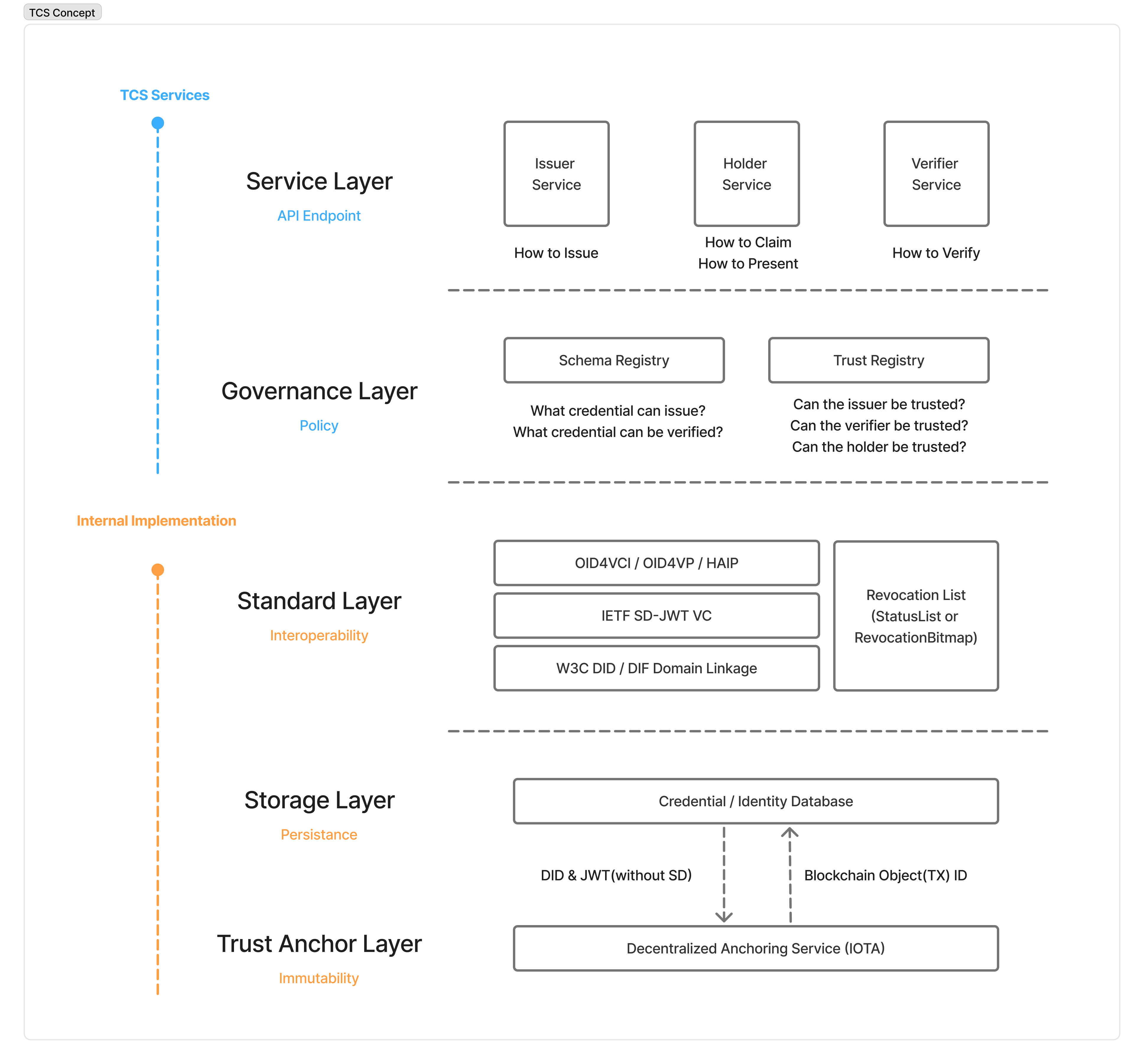

TCS is organized into five architectural layers, each with dedicated services:

Click to view full-size architecture diagram.

---

System Architecture

TCS is a microservices platform composed of seven services and a set of shared libraries. Each service is independently deployable and communicates over HTTP. The shared libraries provide common functionality including configuration, validation, error handling, and database access.

Service Responsibilities

Service	Purpose
Authorization Server	OAuth 2.0 token issuance, DPoP validation, PAR sessions, authorization code flow
Credential Issuer	SD-JWT VC issuance, credential offer management, issuer metadata
Holder Service	Custodial wallet, DID management, OID4VCI/OID4VP client operations
Verifier Service	OID4VP verification, JAR request objects, VP Token validation
Trust Registry	Issuer/verifier registration, API key management, DID creation and import
Schema Registry	VCT (Verifiable Credential Type) metadata definitions and discovery
Scheduler	Background job runner for scheduled maintenance tasks

---

Security Model

TCS implements defense-in-depth through four complementary security layers, each addressing a distinct threat vector.

Layer 1: DPoP (Demonstrating Proof-of-Possession) — RFC 9449

DPoP binds access tokens to the client that requested them. Every token request can include a DPoP proof JWT signed by the client’s private key. The server validates the proof and records the JWK thumbprint (jkt). Subsequent requests using that token must include a fresh DPoP proof from the same key pair, preventing token theft and replay.

• Supported algorithms: EdDSA, ES256
• JTI replay protection with database-backed tracking
• Server-issued DPoP nonces (required per HAIP v1)
• Nonce, JTI, and IAT expiry: 300 seconds each

Layer 2: PKCE (Proof Key for Code Exchange) — RFC 7636

The authorization code flow requires PKCE with the S256 challenge method. The client generates a random code verifier, computes a SHA-256 challenge, and sends the challenge during the PAR request. At token exchange, the client sends the original verifier, and the server validates it against the stored challenge. This prevents authorization code interception attacks.

Layer 3: Signing Trust Anchor

TCS supports two credential signing paths, selected automatically based on key material supplied at issuance time:

• EdDSA DID path — Ed25519 key with a DID identifier; the kid header references the issuer’s DID key. Used when issuerDid and issuerPrivateKey are both present.
• ES256 X.509 path — P-256 key with a certificate chain; the x5c header carries the full chain. Used when no DID key material is present. Required for HAIP v1 conformance.

If only one of the two required fields is present, the request is rejected as an inconsistent signing configuration. Credentials issued via the X.509 path can be verified without DID resolution, providing a trust anchor rooted in the traditional PKI hierarchy.

Layer 4: HMAC Nonces

The nonce endpoint issues HMAC-signed nonces that are validated at credential request time without requiring database lookups. The nonce value encodes an expiry timestamp and is signed with a server-side secret. This provides stateless nonce validation while maintaining the security guarantee that nonces cannot be forged.

---

Multi-Tenancy

TCS uses path-based routing to isolate tenants. Each registered organization receives a unique tenant identifier (e.g., turing, ntu) that appears in issuer URLs and metadata discovery endpoints.

Tenant URL Structure

Resource	URL Pattern
Credential Issuer identifier	https://issuer.turingspace.co/{tenant}
Issuer Metadata	https://issuer.turingspace.co/.well-known/openid-credential-issuer/{tenant}
DID Configuration	https://trust-registry.turingspace.co/.well-known/did-configuration.json/{tenant}
Tenant landing page	https://issuer.turingspace.co/{tenant}

Isolation Model

• Data isolation: The tenant field on the User model is unique and serves as a foreign key for credential offers. Each tenant’s offers, credential configurations, and DIDs are scoped to their user account.
• API key scoping: API keys are tied to individual user accounts. Operations validate that the API key owner has access to the requested tenant resources.
• Metadata isolation: Each tenant’s issuer metadata (credential configurations, display properties, supported types) is generated independently from their registered schemas.

---

Security Practices

• Pre-authorized codes and API keys are stored as SHA-256 hashes only; plaintext values are never persisted.
• Holder passwords use bcrypt hashing.
• Issuer private keys for credential signing are stored encrypted at rest (Cloud SQL encryption).
• All models include createdAt and updatedAt audit timestamps.

---

Enterprise Readiness

Capability	Status
OIDF conformance testing (OID4VCI, OID4VP, HAIP)	OID4VCI passing; OID4VP processing
Multi-tenant architecture	Supported — per-tenant trust anchors and isolation
Schema governance	Built-in Schema Registry with VCT discovery
API key authentication	Supported via Trust Registry registration
DPoP token binding (RFC 9449)	Supported
ISO 27001 / 27701	Architecture aligned; organization-stated
Custodial wallet	Supported via Holder Service
Credential revocation	Internal — issuer-side status tracked on each credential record. Spec-aligned IETF Token Status List is on the roadmap; no public revocation endpoint is exposed today.
Dual signing (EdDSA + ES256)	Supported
Pre-authorized code flow	Supported (OID4VCI)
Selective disclosure	Supported (SD-JWT _sd mechanism)

---

Compliance & Data Handling

For procurement and compliance reviews — especially in regulated sectors (banking, healthcare, government) — TCS’s data-handling posture is stated honestly below. Items not yet shipped are listed as such rather than left ambiguous; items that are handled out of band are flagged so reviewers know the right channel.

Topic	Current posture
Infrastructure region	TCS production runs on Google Cloud Platform asia-east1 (Taiwan). Single-region deployment today.
Data residency	Credential and tenant data in TCS-managed Cloud SQL stays in the deployment region above; cross-region replication is not enabled. Treat this as the residency baseline and confirm log / backup pipeline residency with the TCS team for individual flows.
PDPA / GDPR role	In a typical custodial deployment TCS acts as a data processor under the integrating organisation (the data controller). Contact us to request a reference Data Processing Agreement for review.
Right to erasure	The credential delete endpoint is a soft delete — see Holder · Manage Wallets · Delete a credential. For hard-purge requests (PDPA / GDPR right-to-erasure), contact the TCS team with the affected uuid / credential_id.
Audit log access	Application-layer logs cover credential issuance (POST /v1/offers, POST /credential), DID lifecycle (POST /v1/did, /v1/did/import), API-key authentication, login attempts, and verification sessions — each with timestamp, tenant, request ID, and outcome. A self-serve audit-log export API is not yet exposed and logs are not currently signed / WORM-backed (procurement teams should plan for SIEM-side tamper-evidence). For incident reviews or procurement evidence requests, reach out for a log extract.
Self-host / data portability	Standard self-hosted deployments are not currently offered. Data portability on service termination (Postgres dump + IOTA chain references for issued DIDs) is handled out of band — contact us for the procedure.
Penetration test posture	TCS does not currently publish a public pentest report. Engagements requiring evidence of independent security review can request the current posture under NDA.

This table is the procurement-question source of truth. If something you need is not listed, contact us — we will answer honestly, including “not yet.”

---

Operability — Health, Observability, Runbook Posture

A separate honest table for the SRE and on-call lens. The same “state it, even if it’s not yet” rule applies.

Topic	Current posture
Health endpoint	Each service exposes GET /health returning 200 OK with { status: "ok", service, version }. The check is process-liveness only today — it does not probe the DB or IOTA dependency. Treat it as a Kubernetes liveness signal, not a readiness gate; layer your own dependency probes if you need that distinction.
Logging	Pino structured JSON logs across all services; per-request request_id, tenant, service, and OTel trace_id / span_id when telemetry is enabled. Slow query logging at >200 ms is built into PrismaService.
Tracing / OTel	OpenTelemetry boots when OTEL_ENABLED=true. Default exporter targets Google Cloud Trace; HTTP, Pino, Postgres, and Prisma instrumentations are pre-wired. The library used is @tcs/telemetry, side-effect entry @tcs/telemetry/register. Operators integrating with their own backend should set OTEL_TRACES_EXPORTER / endpoint env vars and verify trace propagation end-to-end.
Rate limiting	Trust Registry login is rate-limited to 5 attempts / 60 s per UUID. Other endpoints have no documented per-tenant rate limit today; conformance-suite or load-test runs should rate-limit on the caller side. A documented platform-wide policy is not yet published — flag intended cadence to the TCS team for sustained tests.
IOTA Tangle dependency	DID creation (POST /v1/did) and on-chain notarization (notarize_on_iota: true) require IOTA reachability. During a Tangle outage these calls return 503 while signed credential issuance with notarize_on_iota: false remains available — set notarize_on_iota: false as the incident mitigation. Recovery and retry behaviour after the network returns is not yet a published SLO; for production rollouts confirm exact retry and queueing semantics with the TCS team.
Schema migrations	Prisma migrations are coordinated centrally; services share a single Cloud SQL backend and migration order is run by the TCS team during each release. Self-hosted operators should follow the migrate-first deployment pattern (run migrations to completion, then roll services). Backward-incompatible migrations are avoided by policy; if one is necessary it ships behind a feature flag with explicit operator notes.

For deeper on-call collaboration (alerting templates, dashboard exports, capacity guidance), contact us — these are tailored per deployment rather than published as boilerplate.

---
